Wall mount readers for access control applications for indoor and outdoor use
Models available to support low frequency (125kHz) and high frequency (13.56MHz) technologies
Industry standard outputs with switch selection to cover most formats
Compatible with most common RFID cards
125kHz reader

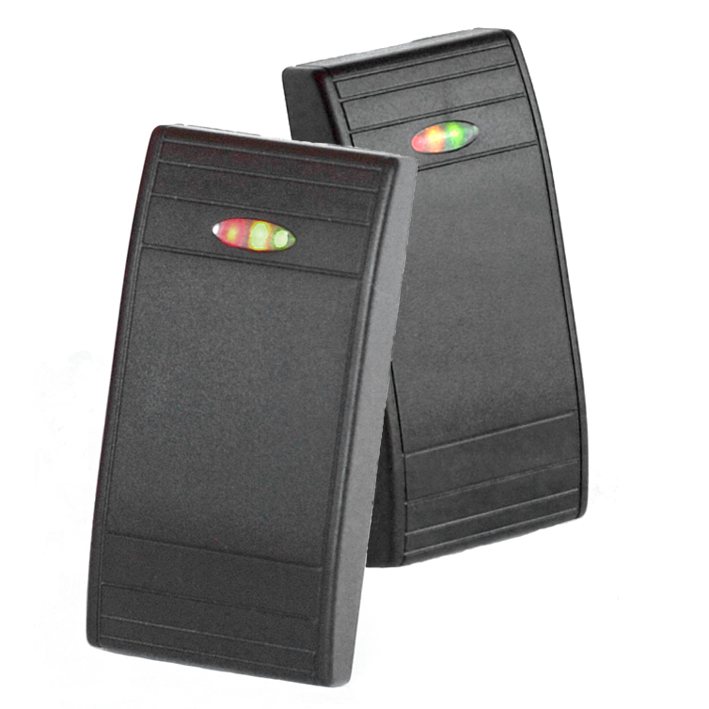

The 684-52 OEM proximity reader consists of three parts: a potted unit containing the electronics, a front cover, and an optional spacer plate. A fixed 10 way colour coded cable protrudes from the back of the potted unit.
The reader will read the code from an RFID transponder and output the code in one of many user selectable formats.

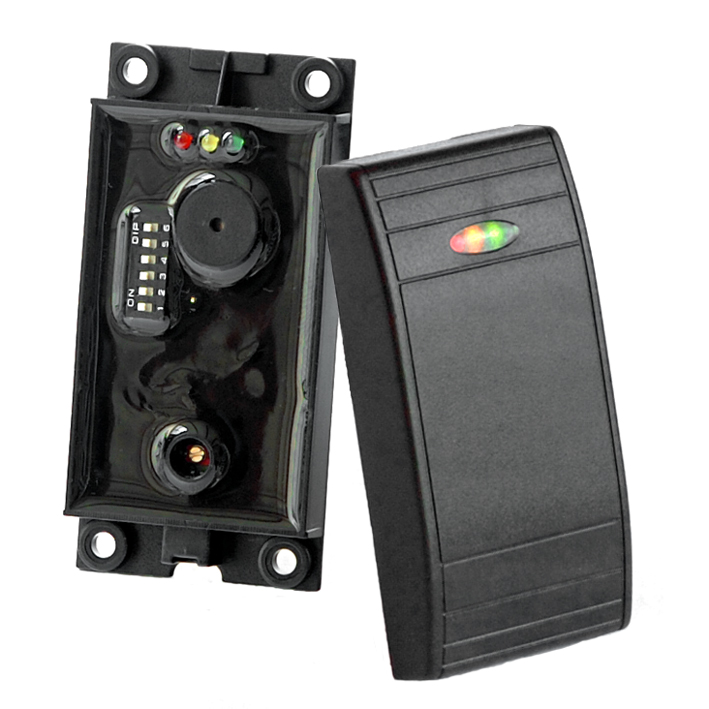

The unit also allows the user control of the three LEDs and beeper. A 6 way DIP switch under the front cover is used to select the required output format and LED operational modes.
Specifications
• Power requirements: +5.0 V to +13.6 V DC. Current consumption 100 mA (typical)
• Operating Frequency: 125 kHz
• 40 bit read only transponders supported: EM4001 family, TEMIC e5550 and equivalent devices
• Output formats supported: Wiegand (42 bit, 37 bit, 34 bit, and 26 bit), Mag stripe emulation, RS232 (9600,n,8,2) with both EIA compatible levels and TTL levels
• Continuous output with tag in field or single transmission
• Typical read range: 150 mm for ISO cards, 80 mm for keyring tags
• 3 indicator LEDs (RED, YELLOW, GREEN), controlled by user
• Beeper (4 kHz tone) controlled by user, additionally emits a 50 ms beep when card is read
• Operating temperature range: -20 ºC to +60 ºC
• 10 way cable: 1 m long
• Weight: 105 grams
• Dimensions: Reader 89 x 45 x 17 mm, optional spacer plate 89 x 45 x 7 mm
125kHz HID PROX II® reader
The 688-52 FSK card reader consists of three parts: a potted unit containing the electronics, a front cover, and an optional spacer plate. A fixed 10 way colour coded cable protrudes from the back of the potted unit.
The reader will read the code from an HID® H10301/4/6 transponder and output the code in one of many user selectable formats.
The unit also allows the user control of the three LEDs and beeper. A 6 way DIP switch under the front cover is used to select the required output format and LED operational modes.
Specifications
• Power requirements: +5.0 V to +13.6 V DC. Current consumption 75 mA (typical)
• Operating Frequency: 125 kHz
• Card types supported: HID® H10301 (26 bit format), H10306 (34 bit format), H10304 (37 bit format)
• Output formats supported: Wiegand, Mag Stripe emulation, Clock/Data, RS232 (9600,n,8,2) with both EIA compatible levels and TTL levels
• Continuous output with tag in field or single transmission
• Typical read range: 60 mm for ISO cards, 30 mm for keyring tags
• 3 indicator LEDs (RED, YELLOW, GREEN), controlled by user
• Beeper (4 kHz tone) controlled by user, additionally emits a 50 ms beep when card is read
• Operating temperature range: -20 ºC to +60 ºC
• 10 way cable: 1m long
• Weight: 100 grams
• Dimensions: Reader 89 x 45 x 17 mm, optional spacer plate 89 x 45 x 7 mm
13.56MHz ISO 14443A reader
The 714-52 OEM proximity reader consists of three parts: a potted unit containing the electronics and antenna, a front cover, and an optional spacer plate. A fixed 10 way colour coded cable protrudes from the back of the potted unit.
The reader will read the unique ID from a Mifare® card and output the code in one of many user selectable formats.
The unit also allows the user control of the three LEDs and beeper. A 6 way DIP switch under the front cover is used to select the required output format and LED operational modes.
Specifications
• Power requirements: +5.0 V to +13.6 V DC. Current consumption 100 mA peak, 35 mA average
• Operating Frequency: 13.56 MHz
• Supported cards: MIFARE® Classic, MIFARE® Ultralight, MIFARE® Ultralight C, MIFARE® DESFire, MIFARE® Plus S/X, NFC NTAG
• Contactless interface according to: ISO/IEC 14443 Type A
• Output formats supported: Wiegand (66 bit, 44 bit, 34 bit odd/even parity, 34 bit odd/odd parity, 26 bit), Mag stripe emulation, Clock/Data, RS232 (9600,n,8,1) with both EIA compatible levels and TTL levels
• Continuous output with tag in field or single transmission
• Typical read range: 50 mm for ISO cards, 20 mm for tags
• 3 indicator LEDs (RED, YELLOW, GREEN), controlled by user
• Beeper (4 kHz tone) controlled by user, additionally emits a 50 ms beep when card is read
• Operating temperature range: -20 ºC to +60 ºC
• 10 way cable: 1m long
• Weight: 95 grams
• Dimensions: Reader 89 x 45 x 17 mm, optional spacer plate 89 x 45 x 7 mm
