Low frequency 125kHz Proximity reader modules with integrated antenna for complete solutions for embedded applications
Standard outputs selectable covering most formats
Models compatible for either EM family or HID® PROX II cards

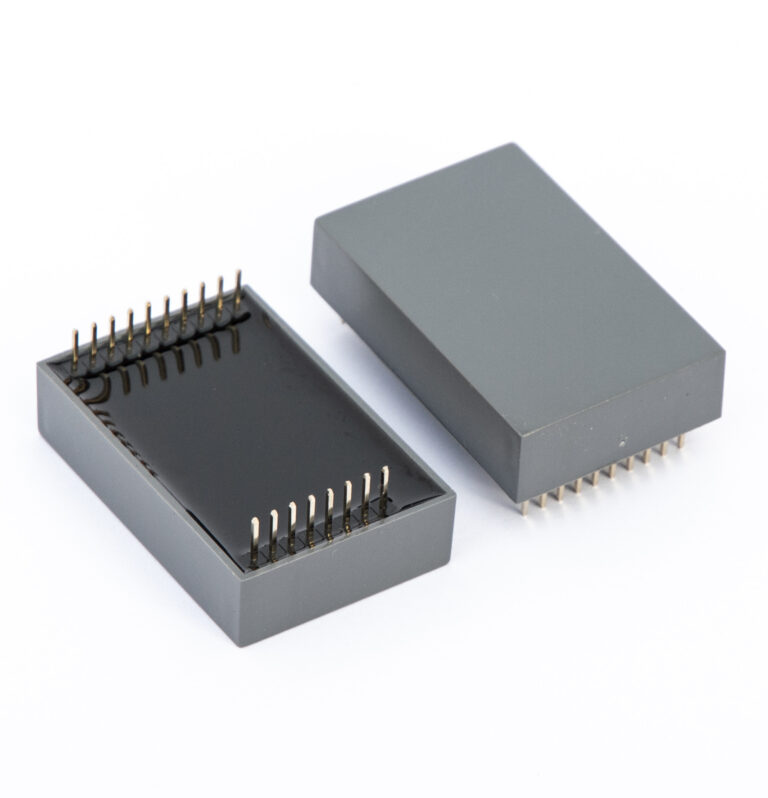

The 680-52 proximity reader module is a fully encapsulated
device that will read the code from an RFID transponder and
output the code in one of many user selectable formats. The
module contains all the detection circuitry required to
implement a proximity reader including an internal coil
antenna. A larger external reader coil may be connected if
greater reading range is required.
Specifications
• Power requirements: either regulated 5V dc or unregulated 5.5V – 12V dc. Current consumption: 65mA (typ); 95mA (max. all conditions)
• RF Frequency: 125 kHz
• 40 bit read only transponders supported: EM4001 family, TEMIC e5550 and equivalent devices
• Output formats supported: Wiegand (42 bit, 34 bit, and 26 bit), Mag stripe emulation, Clock/Data, RS232-TTL (9600,n,8,2) 5V TTL levels, Crosspoint card decoding
• Continuous output with tag in field or single transmission
• Typical read range with internal coil: 90 mm for ISO cards, 60 mm for keyring tag
• External coil connection for remote reading or extended read range
• Connection for piezo beeper: 4 kHz PWM; 50 ms beep on card read
• Operating temperature range: -10 ºC to +50 º
• Weight: ~20 grams
The 689-52 FSK card reader module is a fully encapsulated device that will read the code from an HID® H10301/4 transponder and output the code in one of many user selectable formats. The module contains all the detection circuitry required to implement a proximity reader including an internal coil antenna. A larger external reader coil may be connected if greater reading range is required.
Specifications
• Power requirements: either regulated 5V dc or unregulated 5.5V – 12V dc. Current consumption: 65mA (typ); 95mA (max. all conditions)
• RF Frequency: 125 kHz
• Card types supported: HID® H10301 (26 bit format); HID® H10304 (37 bit format)
• Output formats supported: Wiegand; Mag stripe emulation; Clock/Data; RS232-TTL (9600,n,8,2) 5V TTL levels
• Continuous output with tag in field or single transmission
• Typical read range with internal coil: 60 mm for ISO cards, 30 mm for keyring tag
• External coil connection for remote reading or extended read range
• Connection for piezo beeper: 4 kHz PWM; 50 ms beep on card read
• Operating temperature range: -10 ºC to +50 º
• Weight: ~20 grams
